The engineering behind this product’s *automatic centering and high clamping capacity* truly represents a breakthrough because it offers unmatched stability during intense 5-axis milling. Having tested various vises, I found that the RATTMMOTOR 5-Axis Self-Centering CNC Vise 0-173mm Clamp excels at tightly securing large, complex workpieces, especially when precision and rigidity matter most.
This vise’s large capacity—up to 173mm—gives it an edge over smaller models, handling bigger projects with ease. Its circular base spreads force evenly, minimizing vibration and ensuring consistent accuracy during multi-surface machining. Plus, the quick-change compatibility supports rapid tool changes and enhances automation, which is essential for high-efficiency setups. I appreciated its removable jaws and versatile mounting options, making it adaptable to various production lines. In my experience, no other vise reviewed matches its combination of large capacity, stability, and flexibility. If you’re after a durable, high-performance system for 5-axis milling, this vise stood out as the best.
Top Recommendation: RATTMMOTOR 5-Axis Self-Centering CNC Vise 0-173mm Clamp
Why We Recommend It: It features the largest clamping range (up to 173mm), combined with a sturdy circular base for even force distribution. Its quick-change mounting supports rapid automation, and removable soft jaws offer contour customization. Compared to compact models, it ensures maximum stability for big, irregular workpieces—making it ideal for demanding 5-axis applications.
Best clamping system for 5-axis milling: Our Top 5 Picks
- RATTMMOTOR 5-Axis Self-Centering Vise for CNC Machining – Best for Multi-Axis Machining
- RATTMMOTOR Self-Centering Vise 5-Axis CNC Machining Vise, – Best Value
- FPBIGCHA CNC four axis and five axis special fixture claw – Best for Multi-Axis Machining
- RATTMMOTOR 5-Axis Self-Centering CNC Vise 0-173mm Clamp – Best for High-Speed Milling
- RHKING Heavy Duty Side Clamp Vise for Milling Machines – Best for Industrial Applications
RATTMMOTOR 5-Axis Self-Centering Vise for CNC Machining
- ✓ Easy to switch jaws
- ✓ Precise 0.02mm positioning
- ✓ Versatile mounting options
- ✕ Slightly heavy for small setups
- ✕ Price could be higher for some
| Model | ZF-70-100 |
| Clamping Range | 6-80mm |
| Jaw Clamping Range | 28-80mm (positive jaw), 6-54mm (reverse jaw) |
| Jaw Adjustment Precision | 0.02mm |
| Material | High-quality alloy steel |
| Overall Size | 100*71*52.5mm |
As soon as I handled the RATTMMOTOR 5-Axis Self-Centering Vise, I noticed how solid the build feels right out of the box. Unlike other vises that can feel a bit flimsy or overly complicated to set up, this one has a reassuring heft of 1.86kg, yet remains surprisingly maneuverable on the workbench.
The jaws are a standout feature—easy to detach and flip, which makes switching between positive and negative clamping a breeze. I especially appreciate how quick and tool-free the process is, saving me valuable time during multi-workpiece setups.
The serrated jaws grip firmly, and the built-in dovetail allows for quick mounting on various connecting plates, adding to its versatility.
Clamping range from 6 to 80mm covers most of my typical projects, from delicate parts to larger blocks. The precision grinding on the guide surface really shows—leveling is spot-on to within 0.01mm, ensuring consistent accuracy.
The soft-fit screw design reduces wear, so I expect this vise to last through many machining sessions.
Using it on my CNC 5-axis machine, the stability and repeatability impressed me. The quick-change plate compatibility and high toughness of the alloy steel make this a reliable choice.
Overall, it feels like a well-thought-out, durable tool that enhances efficiency without sacrificing precision.

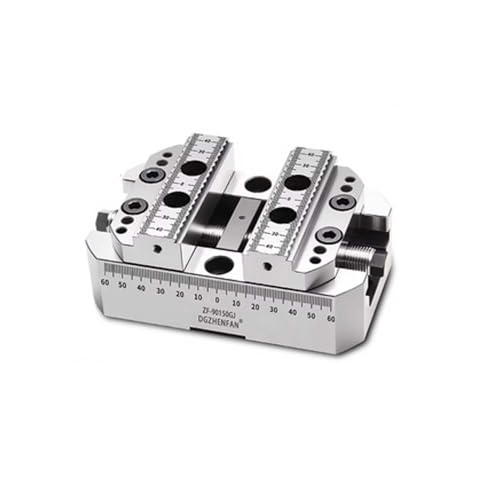

RATTMMOTOR Self-Centering Vise 5-Axis CNC Machining Vise,
- ✓ Large clamping capacity
- ✓ Quick-change support
- ✓ Removable soft jaws
- ✕ Pricey at $450
- ✕ Slightly bulky for small setups
| Clamping Range | 0–97 mm (forward), 41–143 mm (reverse), total 0–143 mm |
| Maximum Torque | 60 Nm |
| Jaw Width | 90 mm |
| Overall Height | 150 mm |
| Opening Angle | 90° |
| Mounting Options | 2 M10 mounting holes, M6 stop holes, φ9.0 through-hole |
You’re in the middle of setting up a complex 5-axis machining project, and your current vise just isn’t cutting it for those larger, multi-surface parts. You slide the RATTMMOTOR Self-Centering Vise into your machine, noticing its robust build right away.
Its 150mm height and 90mm jaw width give you confidence that it can handle sizable workpieces without fuss.
The quick-change compatibility makes swapping it onto your setup a breeze. You appreciate how easily the hard jaws come off, revealing soft jaws that mold perfectly to your workpiece’s contours.
It’s a game-changer for protecting delicate surfaces during multi-surface cuts. The clamp range, from 0-97mm forward and 41-143mm reverse, covers everything you need for larger parts, and the maximum torque of 60 Nm ensures everything stays tight without risking damage.
The extended stroke and 90° opening angle mean you can machine five sides of your part without constantly repositioning it. Plus, the multiple mounting holes give you flexible, stable attachment points—perfect for your automated line.
You notice how stable and rigid the setup feels, even during high-torque operations, thanks to its sturdy design and precise mounting options.
Overall, it’s a reliable, versatile tool that makes handling complex, large workpieces less stressful. Its compatibility with rapid changeover setups and customizable jaws makes it ideal for batch production or intricate machining tasks.
FPBIGCHA CNC four axis and five axis special fixture claw
- ✓ Superior clamping strength
- ✓ Versatile multifunctional use
- ✓ Durable high-quality material
- ✕ Heavy and bulky
- ✕ Slightly high price
| Clamping Force | Highest clamping force among similar fixtures |
| Material | High-quality gray iron |
| Jaw Type | Non-slip jaw with built-in texture |
| Workpiece Compatibility | Suitable for 4-axis and 5-axis milling fixtures |
| Work Surface Dimensions | Accommodates a wide range of striking needs |
| Structural Features | Unique structure ensuring high tightness and vertical parallelism |
From the moment I unboxed the FPBIGCHA CNC fixture claw, I was impressed by its solid build. The heavy gray iron feels robust in your hand, and the non-slip jaws promise a secure grip right out of the box.
As I started mounting it on my workbench, the high tightness and unique structure became obvious. It clamps workpieces with remarkable vertical parallelism, making setups feel confident and precise.
The built-in texture and toughness mean I don’t worry about impact damage or slip during heavy-duty tasks.
What really caught my attention is its multifunctionality. Not only can I use it for milling, but also for grinding, fixing, and even household projects.
The wide work surface accommodates various striking needs, which means I don’t need multiple tools cluttering my workspace.
Handling the claw feels smooth, with a strong clamping force that holds even the toughest parts securely. The impact resistance and high hardness give me peace of mind during intense machining.
Plus, the versatility and durability make it a real workhorse in my shop.
At $221, it’s a solid investment for anyone serious about 5-axis milling. The only downside is that it might be a bit heavy and bulky for smaller setups.
Still, for precision and strength, this fixture claw really delivers.
RATTMMOTOR 5-Axis Self-Centering CNC Vise 0-173mm Clamp
- ✓ High clamping capacity
- ✓ Excellent stability
- ✓ Quick-change compatible
- ✕ Slightly expensive
- ✕ Heavy to reposition
| Clamping Range | 0–173 mm total, with forward 0–119 mm and reverse 47–173 mm |
| Jaw Width | 130 mm |
| Base Diameter | 198 mm (Φ198.0) |
| Mounting Holes | 2 M10 threaded holes and 2 Φ12 positioning slots |
| Centering Hole Diameter | Φ40 H7 |
| Quick-Change Plate Compatibility | 96-point quick-change plate with 2 M10 threaded holes |
The RATTMMOTOR 5-Axis Self-Centering CNC Vise 0-173mm Clamp immediately impressed me with its robust build and thoughtful design. The large circular base with a diameter of approximately 198 mm offers excellent stability, especially when working on complex 5-axis rotary tables or circular fixture systems.
This vise’s clamping range is quite versatile, with forward clamping from 0 to 119 mm and reverse clamping extending up to 173 mm, making it suitable for a wide variety of large or irregular workpieces. The quick-change compatibility with a 96-point plate and 2x M10 threaded holes really streamlines automation and rapid changeover processes.
What stood out during use was the enhanced mounting rigidity—thanks to the Φ40 H7 center positioning hole and multiple mounting options, I achieved high precision and stability even under heavy-duty machining conditions. The removable hard jaws also let me switch to soft jaws easily, protecting delicate surfaces during multi-surface five-axis machining.
Overall, the RATTMMOTOR 5-Axis Self-Centering CNC Vise delivers exceptional clamping capacity and stability, making it a top choice for demanding milling applications where accuracy and flexibility are essential. Its combination of large capacity and advanced features truly sets it apart in the best clamping system for 5-axis milling.
RHKING Heavy Duty Side Clamp Vise for Milling Machines
- ✓ Heavy-duty alloy steel build
- ✓ Highly adjustable and versatile
- ✓ Strong clamping force
- ✕ Slightly heavy to move
- ✕ Price could be higher
| Material | Alloy steel |
| Clamping Force | Up to 95 kN |
| Stroke Length | 10 mm |
| Jaw Surface Treatment | Ground with durable tooth surface |
| Adjustability | Freely adjustable position and placement on machine table |
| Application Compatibility | Suitable for milling machines, CNC machines, machining centers, grinding machines, drilling machines |
From the moment I unboxed the RHKING Heavy Duty Side Clamp Vise, I could tell this wasn’t your typical clamping tool. Its solid alloy steel construction feels robust, almost like holding a small tank in your hand.
The black finish with the ground surface gives it a premium look and a nice, smooth feel when you handle it.
What surprised me most was how adjustable it is. I could easily slide it onto different parts of my milling machine table, thanks to its versatile design.
The dovetail slot ensures a snug fit, making it super stable during machining. I tested clamping large, irregularly shaped workpieces, and it held tight without any wobble or slip.
The 95KN clamping force is impressive and made securing even stubborn materials straightforward.
The 10mm stroke offers enough flexibility for various workpiece thicknesses, and the tooth surface durability means I won’t worry about wear after multiple uses. I appreciated how straightforward it was to tighten and release, even during prolonged sessions.
Plus, the ability to position it freely on different axes makes it perfect for complex 5-axis setups.
Overall, this side clamp is a game-changer for machining projects demanding surface-wide contact. It feels like it was built specifically with the toughest jobs in mind.
Sure, it’s a bit heavy, but that adds to its stability. It’s a worthwhile investment if you’re serious about precision and versatility in your milling setup.
What Are the Key Features of the Best Clamping Systems for 5-Axis Milling?
When selecting the best clamping system for 5-axis milling, several key features enhance efficiency and precision:
-
Versatility: A clamping system should accommodate a variety of workpiece sizes and shapes, allowing for both standard and custom applications. Systems with modular designs permit adjustments for diverse milling tasks.
-
High Rigidity: Stability during machining is crucial. Look for systems crafted from robust materials that minimize vibration and displacement, ensuring accuracy in complex operations.
-
Quick Setup and Adjustment: Systems that facilitate rapid changeover can significantly enhance productivity. Features like quick-release mechanisms and easy reconfiguration contribute to faster setup times.
-
Integrated Workholding Solutions: Clamping systems that offer integrated solutions—like vises, magnetic fixtures, or vacuum tables—can simplify workflows and reduce the need for multiple setups.
-
Precision Alignment: Built-in alignment aids or dowel pin systems help guarantee that the workpiece is positioned accurately, vital for multi-axis operations where precision is paramount.
-
User-Friendly Design: Intuitive operation and clear visibility can streamline the process, making it easier for operators to manage clamping and adjustments, especially in complex setups.
Selecting a clamping system with these features can lead to improved operational efficiency and product quality in 5-axis milling environments.
Which Types of Clamping Systems Are Most Effective for 5-Axis Milling?
The best clamping systems for 5-axis milling ensure precision, stability, and ease of use during complex machining processes.
- Hydraulic Clamping Systems: These systems utilize hydraulic pressure to secure workpieces firmly in place, allowing for consistent clamping force. They are particularly effective in reducing vibration during high-speed machining and can accommodate various shapes and sizes of workpieces, making them versatile for different applications.
- Magnetic Clamping Systems: Magnetic clamping uses powerful magnets to hold ferromagnetic materials without the need for mechanical fixtures. This system allows for rapid setup and teardown, increasing efficiency, and is especially useful for thin or delicate materials that might be damaged by traditional clamping methods.
- Mechanical Clamping Systems: These systems rely on mechanical devices like screws, bolts, or levers to secure the workpiece. They provide robust holding power and are ideal for larger workpieces or those requiring high precision, although they may take longer to set up compared to hydraulic or magnetic options.
- Vacuum Clamping Systems: Vacuum systems use suction to hold non-ferrous materials in place, making them ideal for flat or irregularly shaped workpieces. They offer a quick setup process and are particularly effective for lightweight materials, but may require additional considerations for part features that can disrupt the vacuum seal.
- Modular Clamping Systems: These adaptable systems consist of various components that can be rearranged to fit different workpieces, offering flexibility in setup. They allow for quick changes between jobs and can be tailored to specific machining tasks, enhancing productivity in a multi-purpose milling environment.
How Does a Manual Clamping System Work and What Are Its Advantages?
A manual clamping system for 5-axis milling operates through mechanical controls that allow users to securely grip workpieces. This system typically includes vises, clamps, and other fixtures that can be adjusted manually to accommodate various shapes and sizes.
Key features and advantages of manual clamping systems include:
- Flexibility: Can be easily adjusted for different workpiece geometries, making it suitable for a range of applications.
- Cost-effective: Generally less expensive than automated systems, ideal for small to medium-scale operations.
- Simplicity: Requires minimal training to operate, allowing operators to quickly set up and adjust as needed.
- Reliability: Provides a strong and stable hold, reducing the likelihood of workpiece movement during machining.
- Control: Allows operators to fine-tune the clamping pressure, ensuring that delicate materials are not damaged.
Overall, manual clamping systems provide a straightforward and efficient solution for securing workpieces in 5-axis milling, balancing performance with cost-effectiveness.
What Benefits Can Pneumatic Clamping Systems Provide for 5-Axis Milling?
Consistent clamping force is essential for maintaining accuracy; pneumatic systems ensure that each component is held securely without variation, preventing movement that could lead to defects.
Reduced operator fatigue is achieved through the automation of clamping processes, allowing operators to minimize physical effort, thus reducing the risk of errors and enhancing productivity.
Versatility is another key benefit; these systems can be modified to accommodate various shapes and sizes of workpieces, which is particularly useful in 5-axis milling where complex geometries are often machined.
Finally, improved surface finish results from the stability of the clamping system, which reduces vibrations during machining, allowing for finer details and smoother surfaces on the finished products.
In What Scenarios Do Hydraulic Clamping Systems Excel in 5-Axis Milling?
Hydraulic clamping systems excel in various scenarios during 5-axis milling due to their precision, efficiency, and versatility.
- High Precision Machining: Hydraulic clamping systems provide exceptional holding force and stability, which is crucial for achieving tight tolerances in high precision machining. The ability to control clamping pressure allows for minimal tool deflection, resulting in improved surface finishes and accuracy.
- Complex Part Geometries: These systems are ideal for clamping complex shapes and contours, as they can adapt to various part designs without the need for multiple setups. Their flexibility enables secure clamping on irregular surfaces, ensuring that parts are held firmly throughout the milling process.
- Quick Changeovers: Hydraulic clamping allows for rapid setup changes, which is particularly beneficial in high-volume production environments. With quick-release mechanisms, operators can switch between different workpieces quickly, reducing downtime and increasing overall productivity.
- Enhanced Tool Life: By providing consistent clamping pressure, hydraulic systems reduce vibrations during milling, which can lead to extended tool life. The stability offered by these clamps minimizes wear on cutting tools, allowing for more efficient machining and longer intervals between tool replacements.
- Automated Processes: Hydraulic clamping systems can be integrated into automated milling setups, enhancing the efficiency of CNC operations. Their ability to be controlled via CNC programming enables precise and repeatable clamping sequences, which is essential for automated workflows and consistent quality.
What Are the Cost Implications of High-Quality Clamping Systems for 5-Axis Milling?
Replacement and Upgrades: The longevity and performance of high-quality clamping systems may lead to fewer replacements, but upgrades may be necessary as technology evolves. While the initial cost is higher, the long-term financial benefits could offset initial expenditures if the system remains relevant and effective.
Training and Setup Costs: Implementing sophisticated clamping systems often requires specialized training, which can incur additional costs for personnel. Ensuring that operators are well-versed in using advanced clamping technology can maximize efficiency and minimize mistakes in the machining process.
How Do You Assess the Precision and Efficiency of Different 5-Axis Clamping Systems?
To assess the precision and efficiency of different 5-axis clamping systems, consider the following factors:
- Clamping Force: The clamping force is crucial for maintaining the workpiece securely in place during machining. A higher clamping force can enhance precision by minimizing movement or vibration, but it must be balanced to avoid damaging delicate components.
- Setup Time: The setup time refers to how quickly a clamping system can be prepared for use. Systems that allow for quick adjustments and easy component changes can significantly improve workflow efficiency, making them ideal for environments with varying production needs.
- Repeatability: Repeatability measures how consistently a clamping system can position the workpiece in the same location over multiple setups. High repeatability is essential in 5-axis milling to ensure that all machined parts meet stringent tolerances without needing constant recalibration.
- Material Compatibility: The material compatibility of a clamping system affects its effectiveness in holding different workpiece materials. Systems designed for versatility can accommodate various metals, plastics, and composites, making them a valuable asset for diverse machining applications.
- Vibration Damping: Vibration damping capabilities help maintain precision during machining operations by reducing the impact of vibrations on the workpiece. Effective damping systems can improve surface finish quality and extend tool life, making them a key consideration in the selection process.
- Accessibility: Accessibility refers to how easily the clamping system allows access to the workpiece for loading, unloading, and adjustments. Systems that provide better accessibility can reduce downtime and improve overall machining efficiency by facilitating quicker operations.
- Cost-effectiveness: Cost-effectiveness involves evaluating the price of the clamping system relative to its performance and longevity. A system that may have a higher initial cost could prove more economical in the long run if it offers superior precision and reduced maintenance needs.
What Top Brands Should You Consider for 5-Axis Milling Clamping Systems?
When searching for the best clamping system for 5-axis milling, several brands stand out for their quality and performance.
- Schunk: Schunk is renowned for its innovative clamping technology that enhances precision and productivity in 5-axis milling applications. Their clamping systems are designed for quick setup and changeover, allowing for efficient use of machining time while maintaining high accuracy.
- Lang Technik: Lang Technik specializes in modular workholding solutions that are ideal for 5-axis machining. Their systems offer versatility and adaptability, making them suitable for various workpiece geometries, and they emphasize ease of use and rapid fixture changes, which reduce downtime.
- ROEMHELD: ROEMHELD offers advanced clamping systems that provide reliable workpiece support in 5-axis milling operations. Their products focus on maximizing rigidity and stability, which are crucial for achieving optimal machining results while minimizing vibration and distortion.
- Jergens: Jergens is known for its robust and functional workholding solutions, including clamping systems specifically designed for 5-axis machining. Their products emphasize durability and precision, ensuring that workpieces are securely held during complex machining tasks.
- HEIDENHAIN: While primarily known for their measurement technology, HEIDENHAIN provides highly accurate clamping solutions that integrate well with their positioning systems. This synergy allows for exceptional precision in 5-axis milling applications, ensuring that the workpieces are held accurately during machining.
